Distance Sensors
Micro-Vu Multisensor Measuring Systems are equipped and ready to incorporate laser triangulation sensors. Specular and diffuse mode configurations are available. The distance sensor collects data as it moves between two programmed XYZ locations, ideal for surface flatness and Z distance measurements.
Product Overview Document
- Specifications
- Modes
- Gallery
Distance Sensors
LSM4

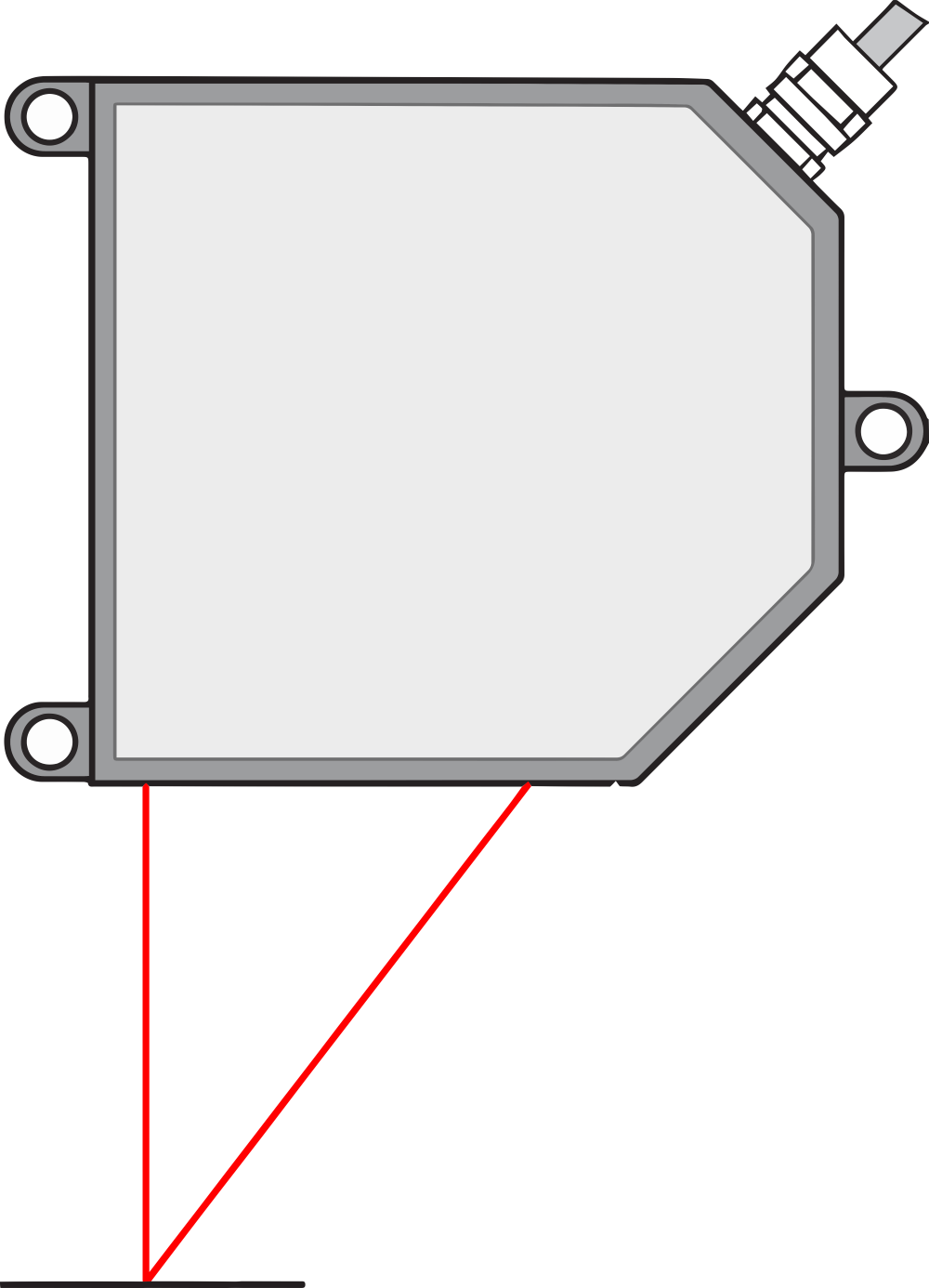

LSM4-10 has a comfortable working distance and measurement range, which makes this sensor suitable for measurements on a variety of parts.
LSM4-2 is for higher accuracy measurements, works in diffuse and specular mode, and has a small spot diameter which benefits small feature measurements.
VAS

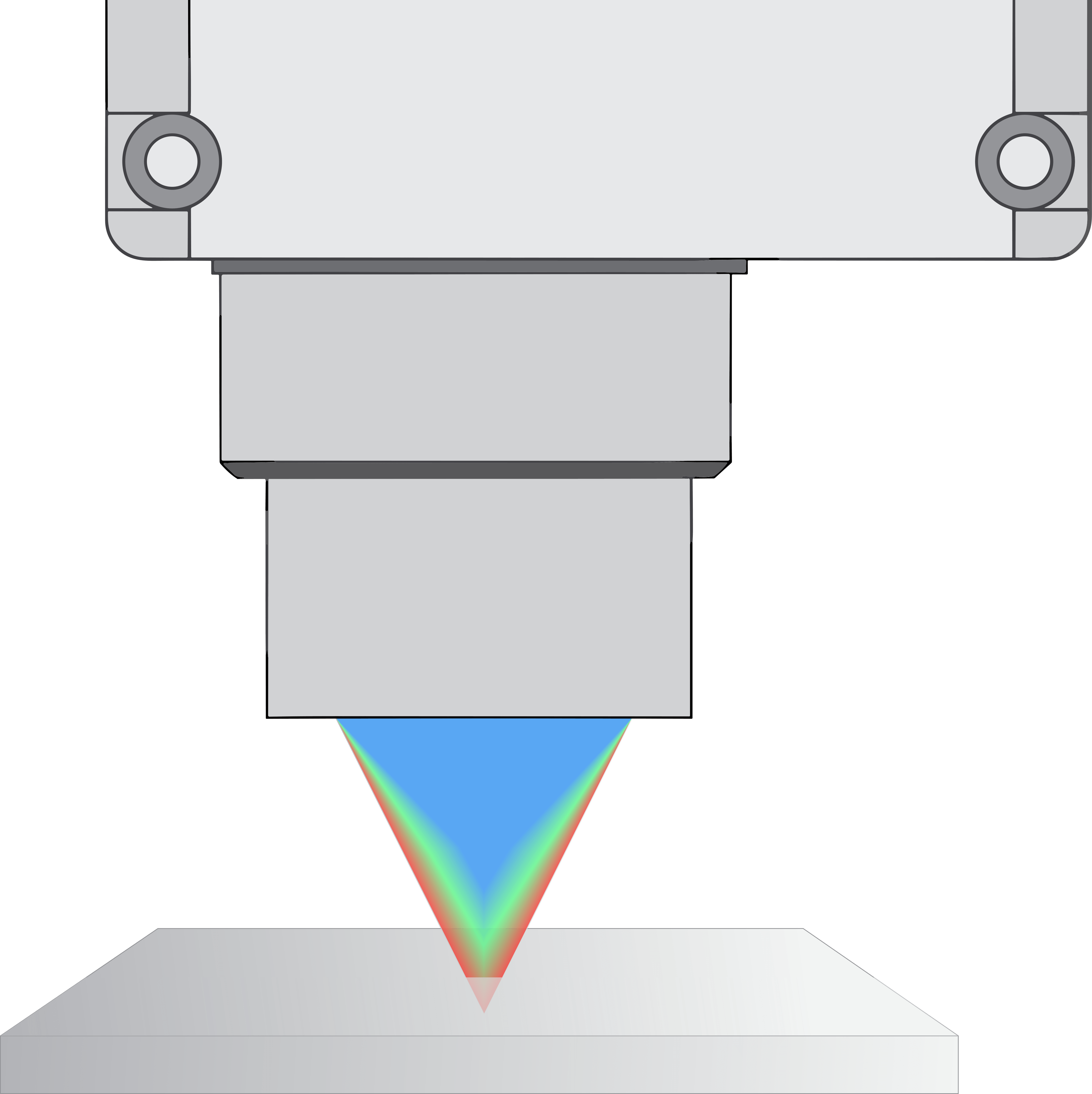

VAS allows for measurements close to vertical features or inside small holes compared to LSM sensors.
The small spot size is ideal for measuring surfaces such as glass, polished metal, ceramic, and coatings.
| Specifications | LSM4-10 | LSM4-2 | VAS-500 | VAS-4000 | VAS-10000 |
|---|---|---|---|---|---|
| Modes | Diffuse, Specular | Diffuse, Specular | - | - | - |
| Range (mm) | 10 | 2 | 0.5 | 4 | 10 |
| Working Distance (mm) | 35 | 25 | 12.7 | 37.5 | 71.5 |
| Spot Size (µm) | 32 x 45 | Ø 23 | Ø 5 | Ø 8 | Ø 16 |
| Resolution* (µm) | 0.15 | 0.03 | 0.02 | 0.16 | 0.4 |
| Supported Software |  InSpec Classic InSpec | InSpec ClassicInSpec | InSpec ClassicInSpec | InSpec | InSpec |
*Resolution depends on the material surface.
Spot Size at mid of measuring range.
VAS are not available on Excel models with a z-axis larger than 250mm.
