HF5Field Of View Measuring System
HF5 is a fast, two dimensional, high precision measurement machine featuring a horizontal layout, optimal for measuring cylindrical parts. HF5 touch panel allows users to automatically search for measurement programs, execute them, and display measurement results. The systems include our InSpec Metrology Software, image magnification, advanced LED lighting, and features a single USB connection to your workstation computer.
HF5 Features
cameraSingle Snapshot Measurement
settingsStainless Steel Rotary Stage
Large Measurement Range
High Resolution Camera
Advanced Lighting System
Automatic Part IdentificationProduct Overview Document
HF5 Specifications
| Measurement Capacity | XY Accuracy | Measurement Range | ||||
|---|---|---|---|---|---|---|
| 69.3 x 49.6 mm, 0-90° |
| 30 mm |
1 Within operating temperature of 20.0℃ ± 1℃ at the focal point position.
2 L is in mm.
3 Up to lengths of 75 mm.
4 Using Micro-Vu Calibration Artifact
| Machine Dimensions | Machine Weight | Starting Price |
|---|---|---|
| 282 × 777 × 648 mm | 35 kg | US$13,660* |
*U.S. price shown for complete measuring system including InSpec Metrology Software. Pricing subject to change without notice.
HF5 Fixture Kits
The HF5 machine includes the small fixture kit. Additionally, there are medium and large kit configurations available, which can be purchased at an extra cost.
Fixture Examples

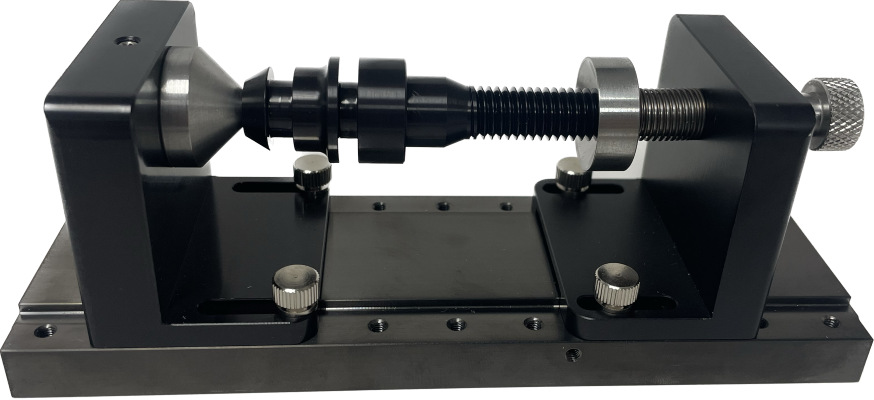

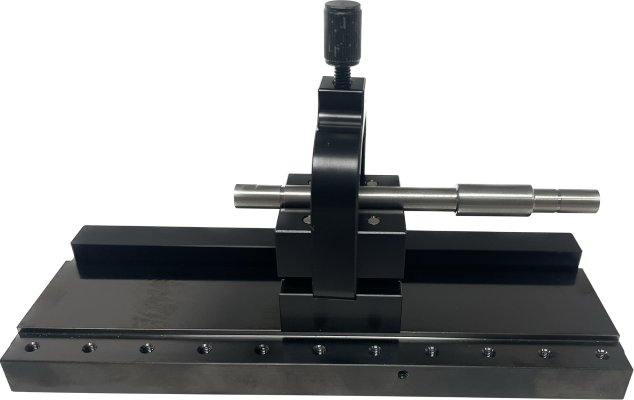

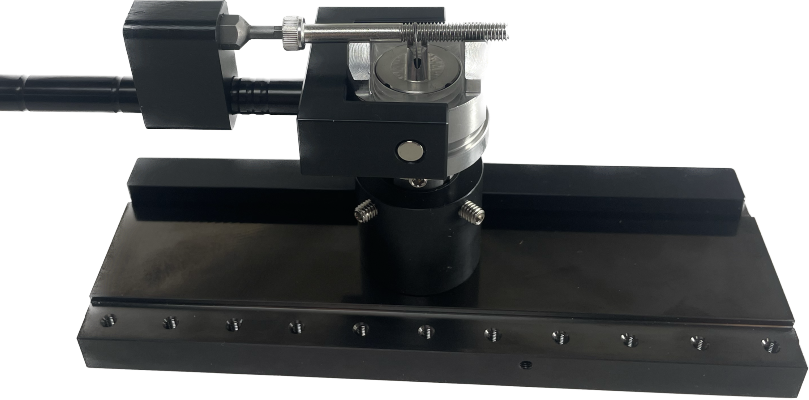

 Shaft Centering Fixture |  Screw Clamp |  V-Block and Clamp | |
| Small Fixture Kit | done | done | done |
| Medium Fixture Kit | done | done | done |
| Large Fixture Kit | done | done | done |

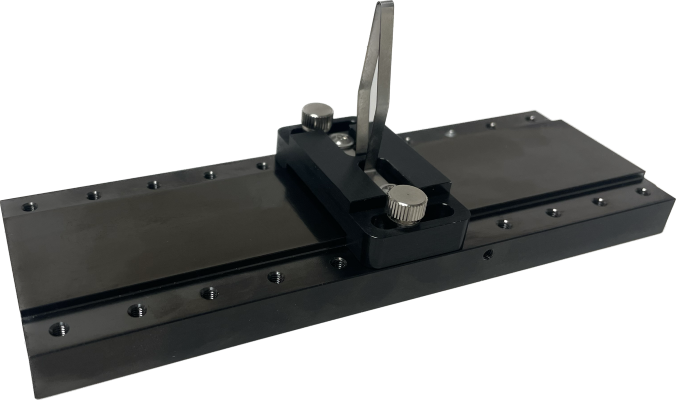

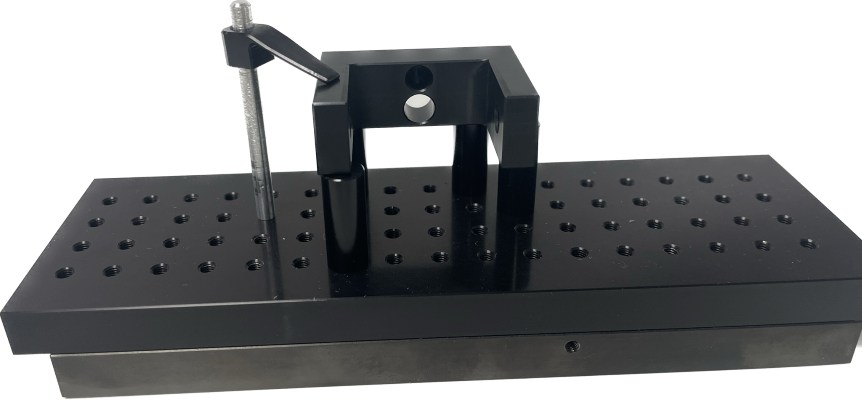

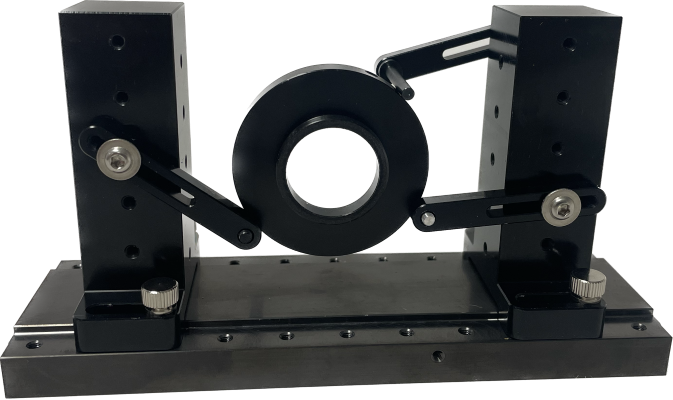

 Upright Shaft Holder |  Base Plate |  Tower Fixture | |
| Small Fixture Kit | - | - | - |
| Medium Fixture Kit | - | done | - |
| Large Fixture Kit | done | done | done |

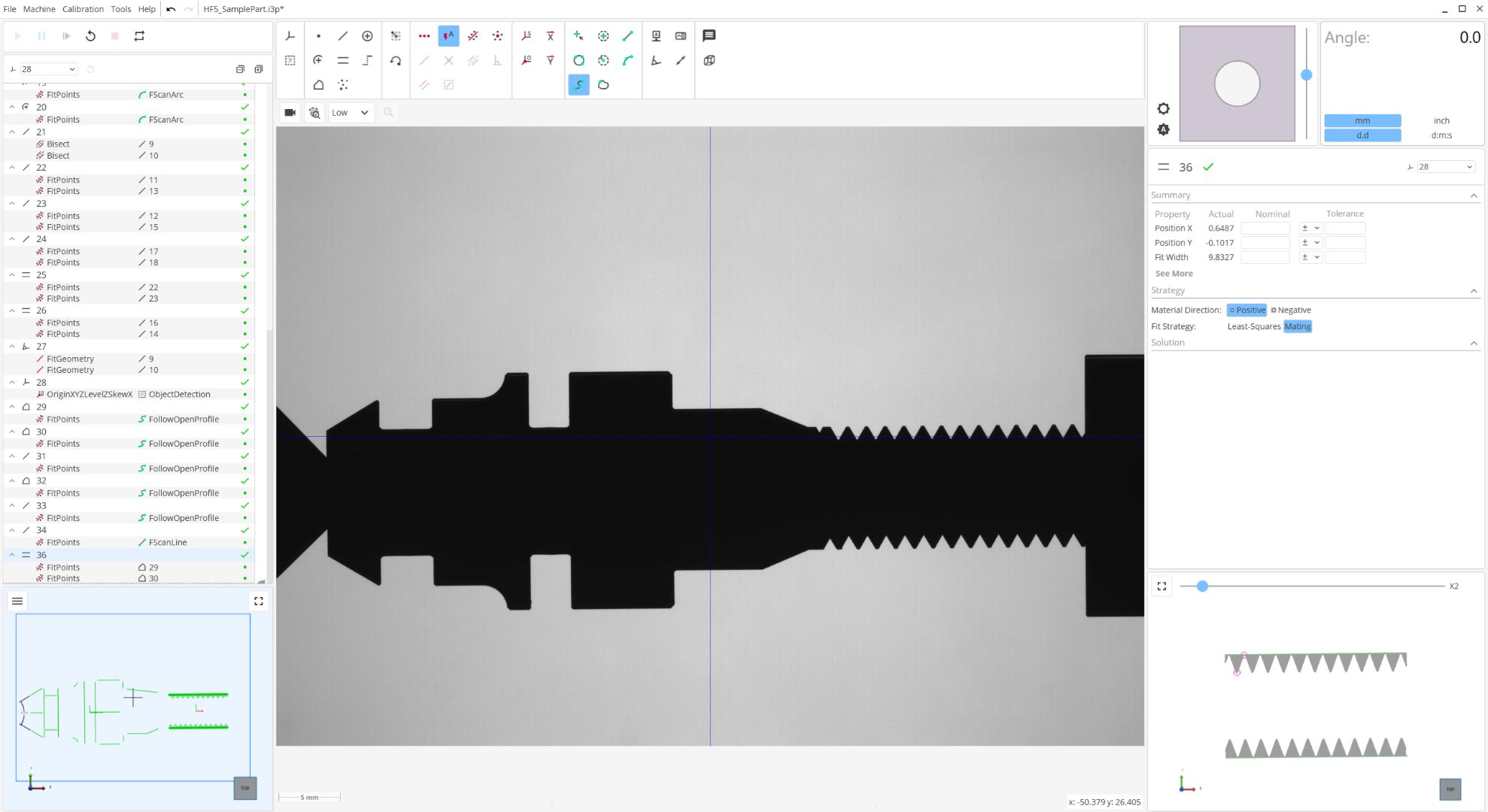

InSpec for HF5
Designed to work seamlessly with the HF5, InSpec software provides the tools needed for creating repeatable measurement processes with efficiency and precision. It allows for more accurate programming, feature creation, and visualization tailored to the HF5's specific design. InSpec utilizes advanced edge detection algorithms to quickly detect and measure features with sub-pixel accuracy and repeatablility.
Efficient Program Design
- Import nominal values from 3D Cad models or based on reference part measurements
- Profile Evaluation using advanced fit strategies.
- Colored datapoint indicators provide conclusive results
Report Automation
- Automatically record data and print an inspection report
- Export measurement results and data automaticaly after completing measurements
